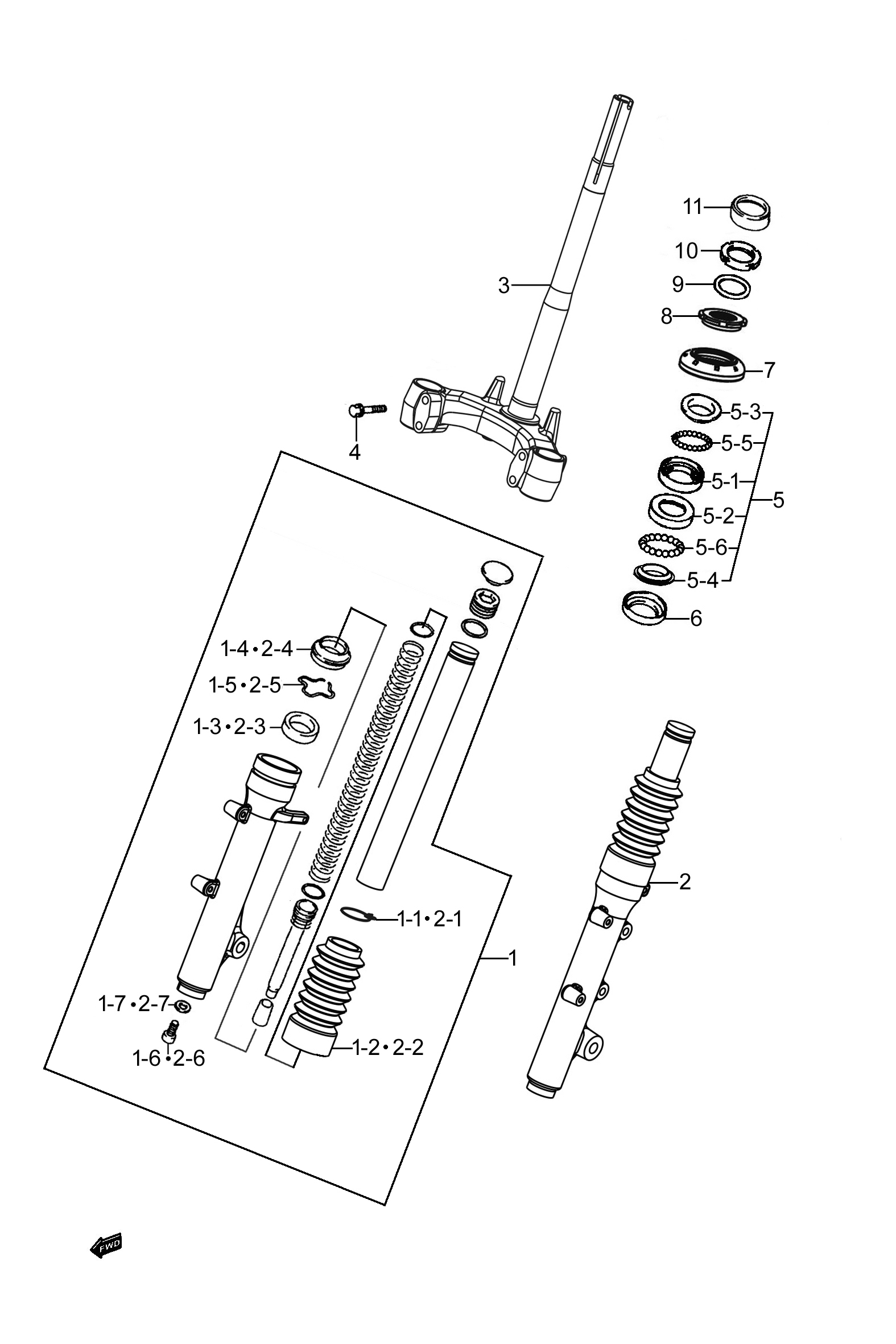

图42 前叉组 (T02-S400-0023)
| 序号 |
零部件图号 |
零部件名称 |
数量 |
备注 |
| 1 |
51103H7K000H000 |
前右减震器总成 |
1 |
|
| 1-1 |
51174H12730H000 |
卡簧 |
1 |
|
| 1-2 |
51175H7N000H000 |
防尘罩 |
1 |
|
| 1-3 |
51153H45F10H000 |
油封 |
1 |
|
| 1-4 |
51173H7N000H000 |
防尘盖 |
1 |
|
| 1-5 |
51156-45F40-000 |
钢丝挡圈 |
1 |
|
| 1-6 |
51147H7Y000H000 |
螺钉 |
1 |
|
| 1-7 |
51148-05320-000 |
密封圈 |
1 |
|
| 2 |
51104H7K000H000 |
前左减震器总成 |
1 |
|
| 2-1 |
51174H12730H000 |
卡簧 |
1 |
|
| 2-2 |
51175H7N000H000 |
防尘罩 |
1 |
|
| 2-3 |
51153H45F10H000 |
油封 |
1 |
|
| 2-4 |
51173H7N000H000 |
防尘盖 |
1 |
|
| 2-5 |
51156-45F40-000 |
钢丝挡圈 |
1 |
|
| 2-6 |
51147H7Y000H000 |
螺钉 |
1 |
|
| 2-7 |
51148-05320-000 |
密封圈 |
1 |
|
| 3 |
51410H7K000H000 |
下联板组成 |
1 |
|
| 4 |
01550-0840B-000 |
六角法兰面螺栓 |
4 |
|
| 5 |
51600H7DY00H000 |
转向轴承组合 |
1 |
|
| 5-1 |
51611H2A201H000 |
上转向轴承内座圈 |
1 |
|
| 5-2 |
51612H7D000H000 |
下转向轴承内座圈 |
1 |
|
| 5-3 |
51621H2A200H000 |
上转向轴承外座圈 |
1 |
|
| 5-4 |
51622H7D000H000 |
转向轴承下外座圈 |
1 |
|
| 5-5 |
51610H2A200H000 |
转向柱上端滚珠 |
1 |
|
| 5-6 |
51620H7D000H000 |
转向柱下端滚珠 |
1 |
|
| 6 |
51644H7D001H000 |
转向柱下密封圈 |
1 |
|
| 7 |
51643H7D001H000 |
转向柱上防尘罩 |
1 |
|
| 8 |
51631-48H00-000 |
转向柱螺母 |
1 |
|
| 9 |
51635-33GA0-000 |
转向锁紧垫圈 |
1 |
|
|
